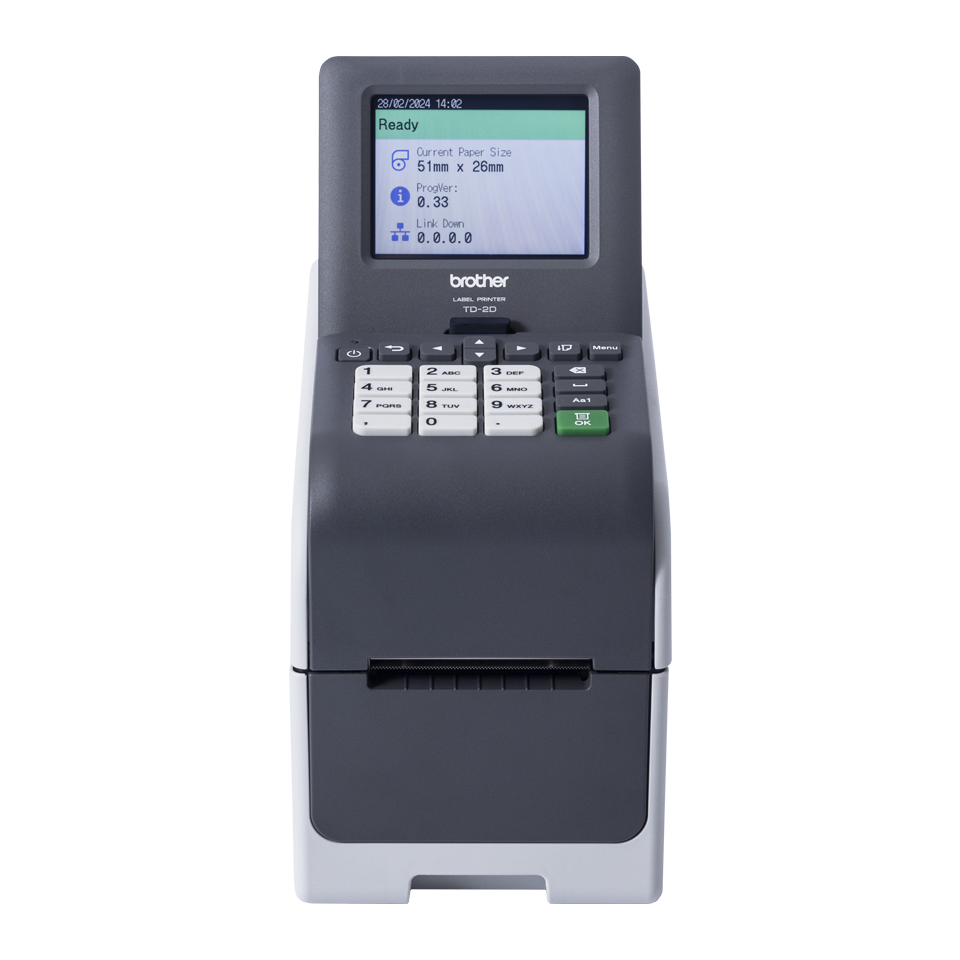

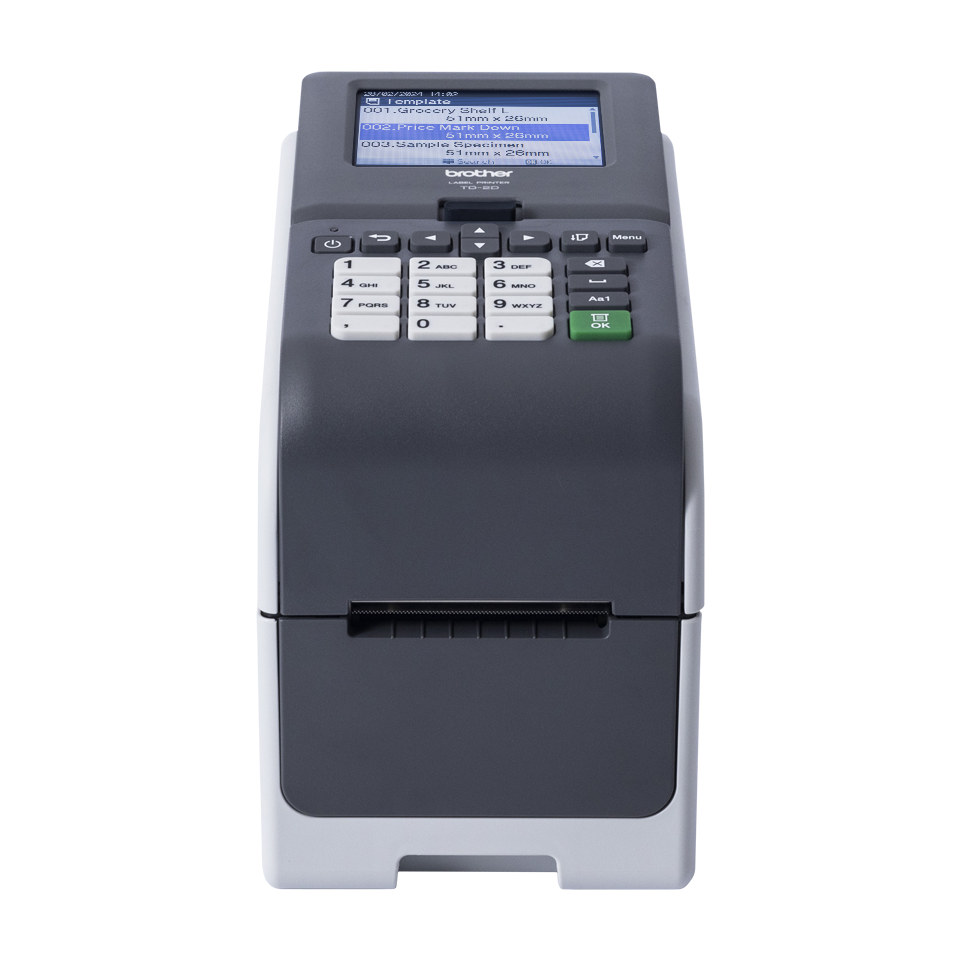

Brother TD-2320DSA300 - 2" desktop network label printer
The professional, high-resolution 2" desktop network label printer with 3.5" colour touch screen display.Product Details
High quality 300dpi print resolution
USB & network connectivity (serial connectivity available as optional accessory with PA-SCA-002)
ZPL 2, EPL 2, DPL printer language emulations
Built in colour touch screen with keyboard
256MB RAM, 64MB Flash
Three year warranty
Product Overview
Increasing productivity and reducing costs are key priorities in any workplace. And when it comes to label printing, the TD-2320DSA300 combines proven desktop printer performance with the versatility to operate in multiple locations, helping you to achieve greater efficiencies across your business. The TD-2320DSA300 works as a standalone printing solution with its 3.5" colour touch screen display and keyboard.
With a range of specialised features and high-quality print resolutions, the TD-2D is the perfect label printer for retail price mark down labels and food traceability ingredient labels – where you need to print high-quality labels in any location.
Supplies and Accessories
-
EU AC adapter accessory with 2-pin plug for powering Brother TD-2D label printers.This product is available from our authorized retailers
-
EU Healthcare AC adapter accessory with 2-pin plug for powering Brother TD-2D printers.This product is available from our authorized retailers
-
This product is available from our authorized retailers
-
1-slot battery charger accessory for selected TD-2D desktop label printers.This product is available from our authorized retailers
-
Lithium-ion rechargeable battery for the TD-2D Label printers.This product is available from our authorized retailers
-
This product is available from our authorized retailers
-
Thermal Print Head (203dpi) for the TD-2D label printersThis product is available from our authorized retailers
-
Thermal Print Head (300dpi) for the TD-2D label printersThis product is available from our authorized retailers
-
This product is available from our authorized retailers
-
This product is available from our authorized retailers
-
This product is available from our authorized retailers
-
This product is available from our authorized retailers
Specifications
General
| Technology | Direct thermal |
| Maximum media width (mm) | 63mm |
| Buttons | Power , Feed, Print, Back, Menu |
| Display | Colour touch screen |
| Memory capacity | 64MB |
Connectivity
| Serial | Yes (Requires optional cable) |
| USB interface | USB 2.0 Full Speed (Type C) |
Dimensions and weights
| Dimensions | 119mm (W) x 224mm (D) x 176mm (H) |
In the box
| In the box | AC adaptor, AC Power supply cord, Documentation, Printer, USB Cable |
Operating systems & software
| Supported Operating Systems | Windows (10, 11, Server 2016, Server 2019, Server 2022) |
Operating Environment
| Operating Humidity | 20% - 80 % |
| Operating Temperature | 5°C - 40°C |
| Storage Humidity | 10% - 90% non-condensing |
| Storage Temperature | -20°C - 60°C |
Printing
| One Dimensional Barcode Symbology | CODABAR(NW7), Code128, Code39, EAN13(JAN13), EAN8(JAN8), GS1 DataBar (RSS), GS1 Databar(Omnidirectional/Truncated/Stacked/Stacked Omnidirectional/Limited/Expanded/Expanded Stacked), GS1-128(UCC/EAN-128), ITF(I-2/5), POSTNET, UPC-A, UPC-E |
| Two Dimensional Barcode Symbology | DataMatrix, Aztec, MaxiCode, PDF417, QR Code |
| Maximum Print Length | 3000mm |
| Printing Resident Fonts | Letter Gothic Bold, Gothic, Brussels, Helsinki, Letter Gothic Regular |
| Resolution (dpi) | 300 |
| Printing Maximum Label Width | 63mm |
| Printing Maximum Roll Core Diameter | 12,7mm |
| Supported commands | Raster, P-touch Template, ZPL 2 emulation, CPCL emulation, ESC/P |
Warranty
| Warranty | 3 years return-to-base |
Support & Drivers
Learn more about this product
Crop function
Ideal for creating product labels. Your document is scanned and the barcode information is automatically processed. Individual labels are then printed from your TD-2D desktop label printer.
Crop function
Ideal for creating product labels. Your document is scanned and the barcode information is automatically processed. Individual labels are then printed from your TD-2320D300 desktop network label printer.
Complete print solution
Optional accessories to suit your business needs. Accessories include battery (PA-BT-004), cutter (PA-CU-004) or label peeler (PA-LP-002).
Space saving design
A compact 2 inch label printer, designed to fit on most worksurfaces without compromising on working space.

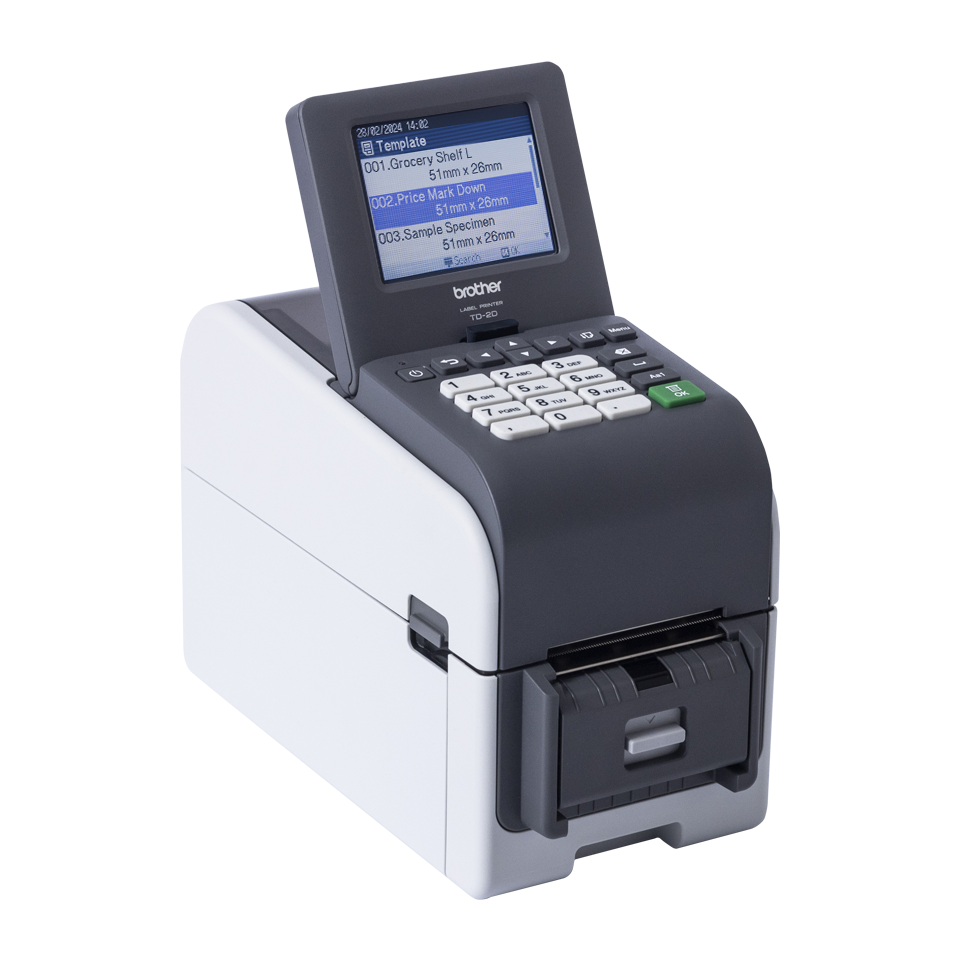

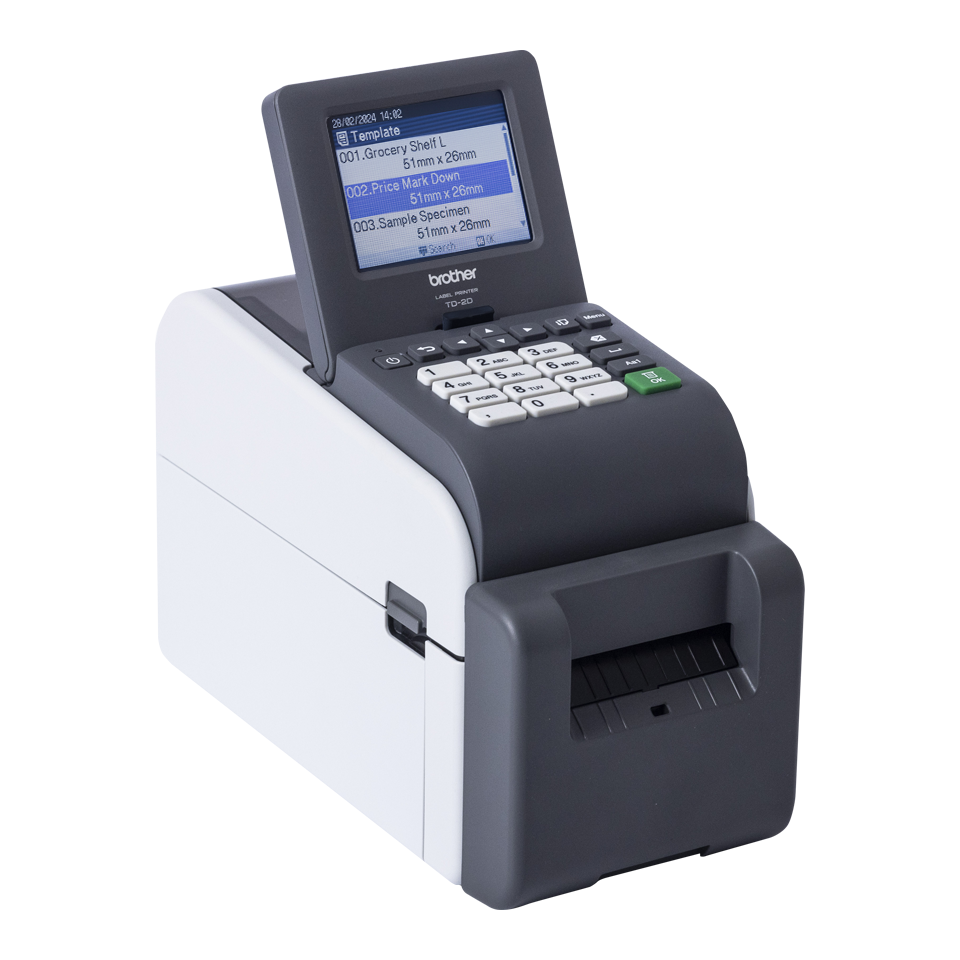

Cut or peel
A cutter or peeler are the perfect accessories for adding efficiencies to your business.
Integrated USB host
A USB-host port is built-in as standard. Enabling a barcode reader or weighing scales to be connected. Barcodes are scanned to create print information. Using pre-defined templates, your information is printed on to labels.

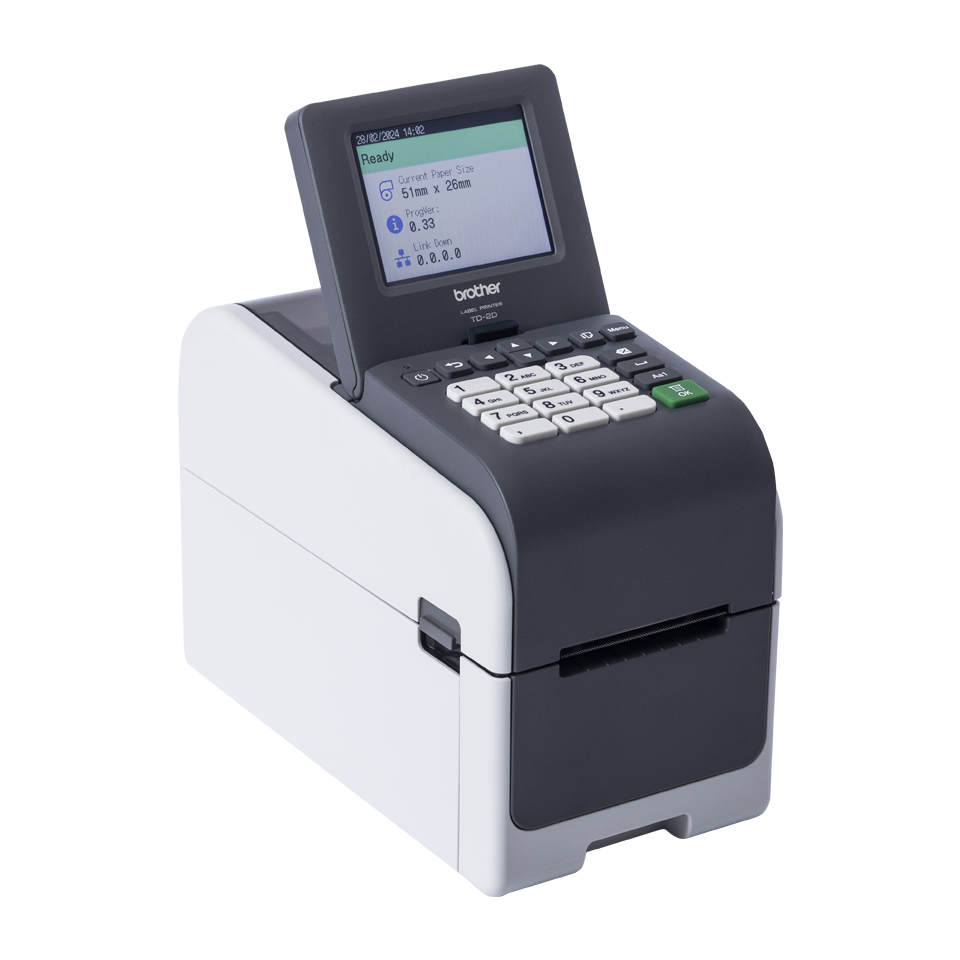

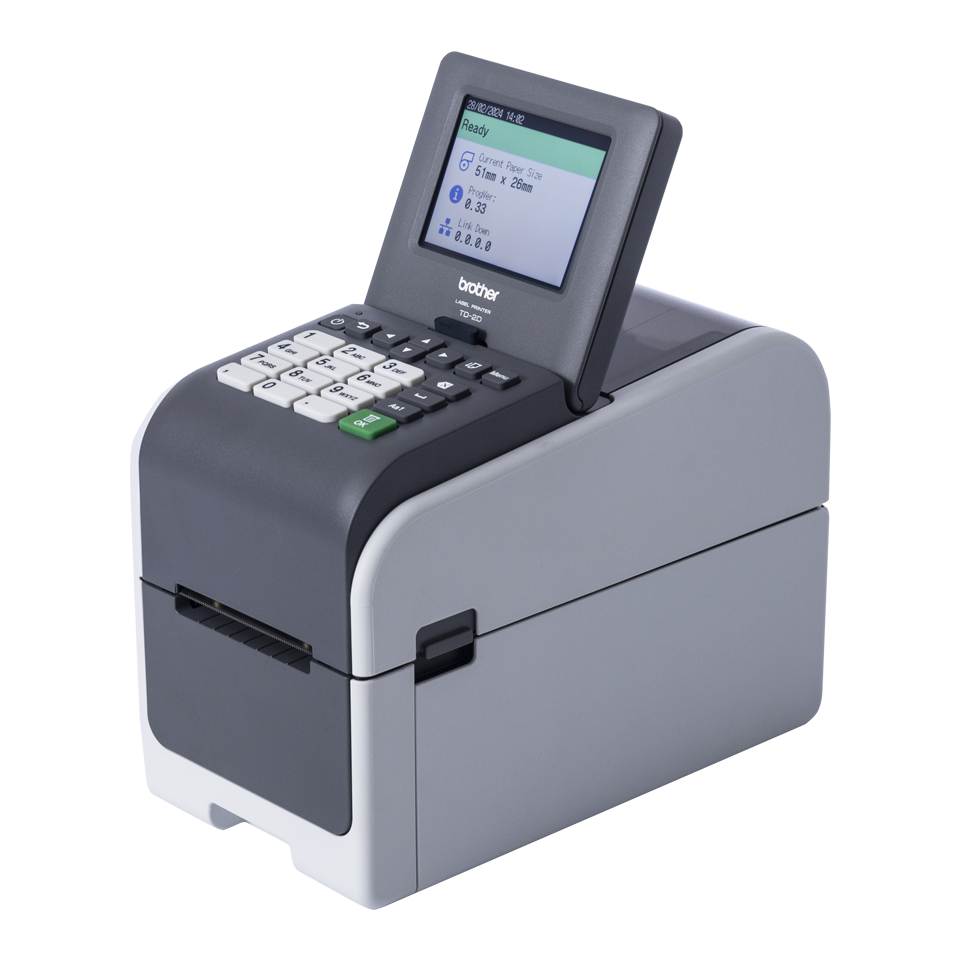

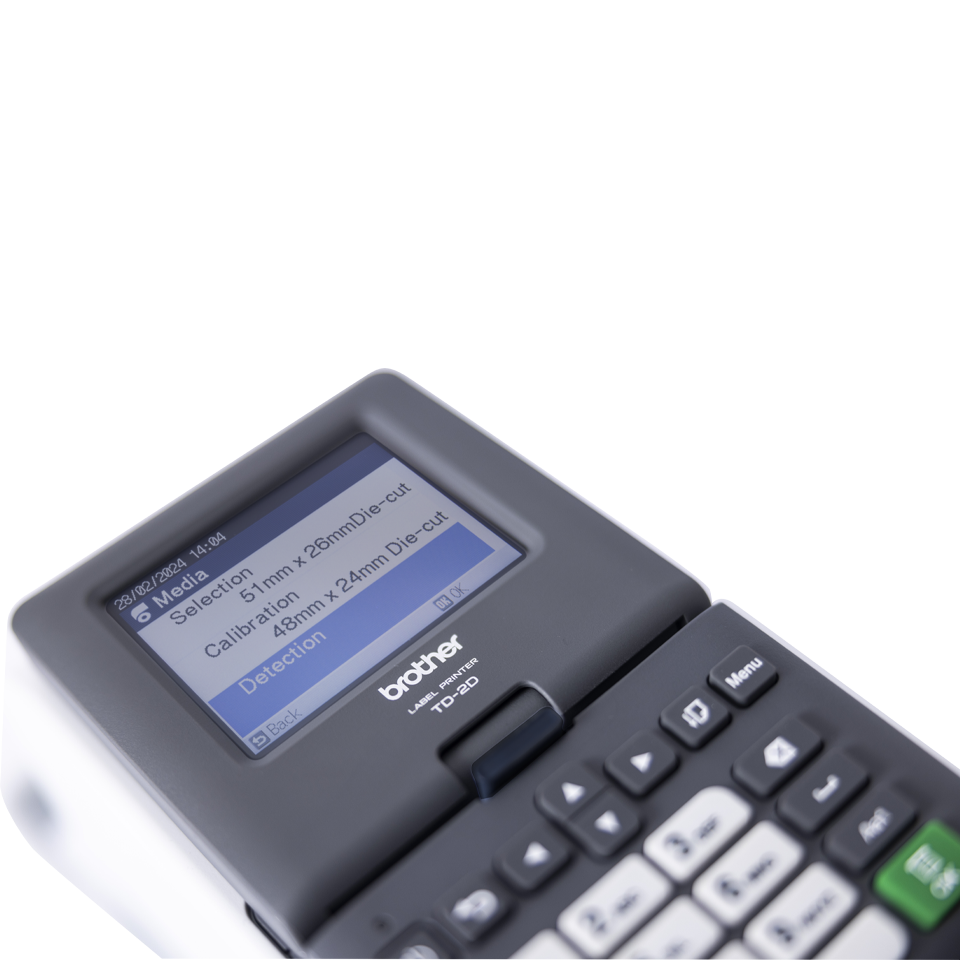

3.5" Colour touch screen
A user-friendly colour touch screen display allows for stand alone printing and on-the-go editing of templates.
Software support
Brother provides the tools for developers to integrate their printing applications. Printer drivers are available for Windows Operating Systems. Software Development Kits are available to embed label printing into existing software programs. Software development kit's available from: Information for Developers
Remote update
Enabling IT administrators to remotely update and configure many Brother label printers. Updates are easily uploaded to an online location and the URLs shared with users to install the latest configuration via the Mobile Deploy App.
Professional print quality
Print in high resolution up to 300dpi for any professional setting.
