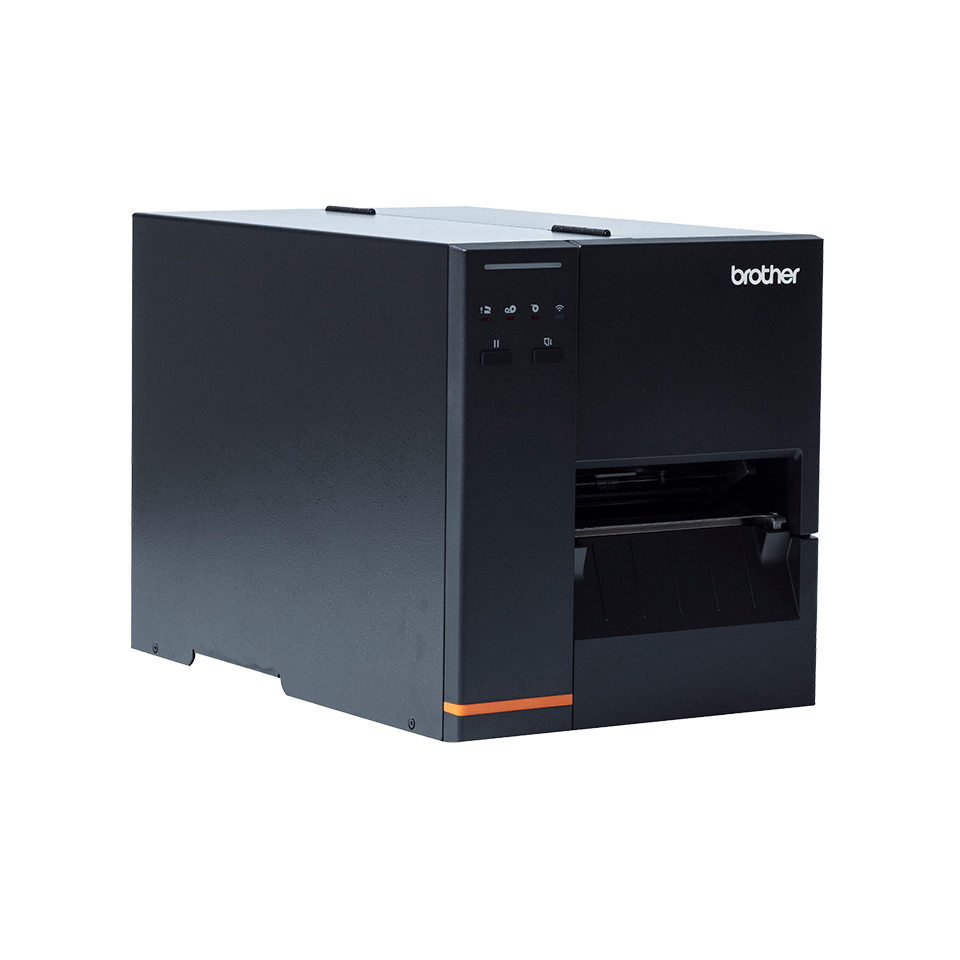

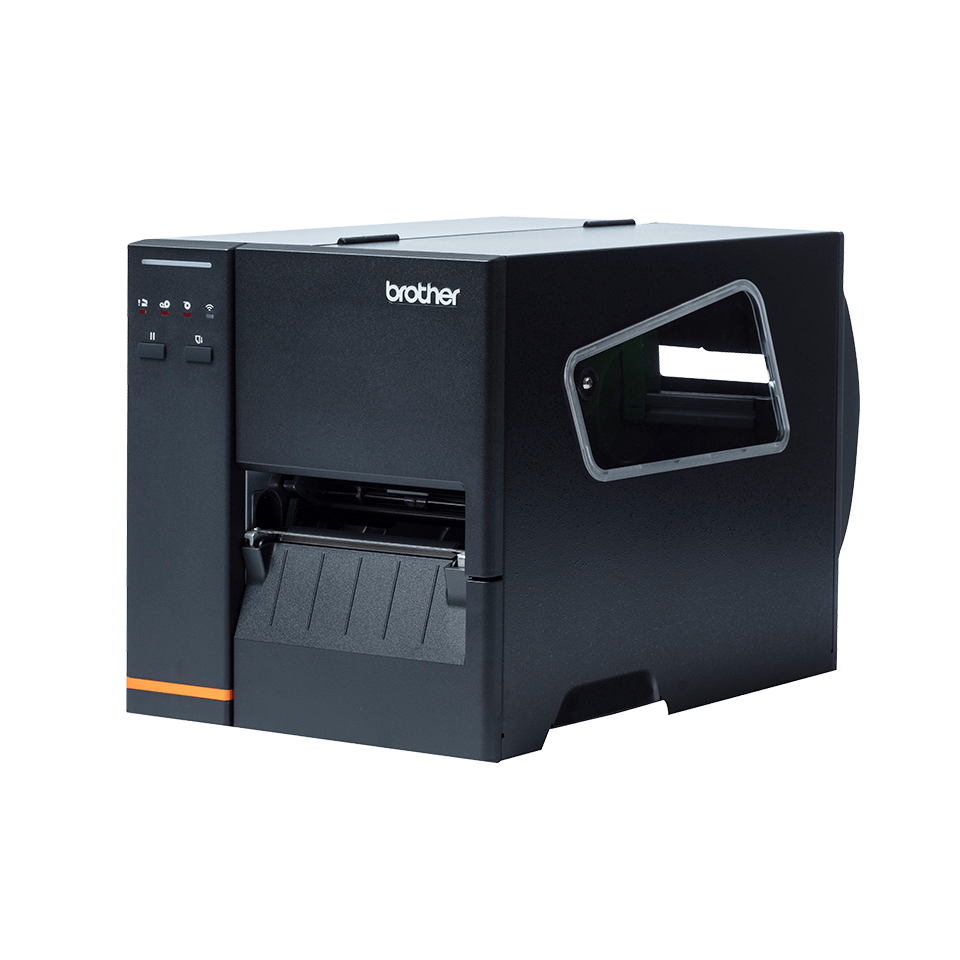

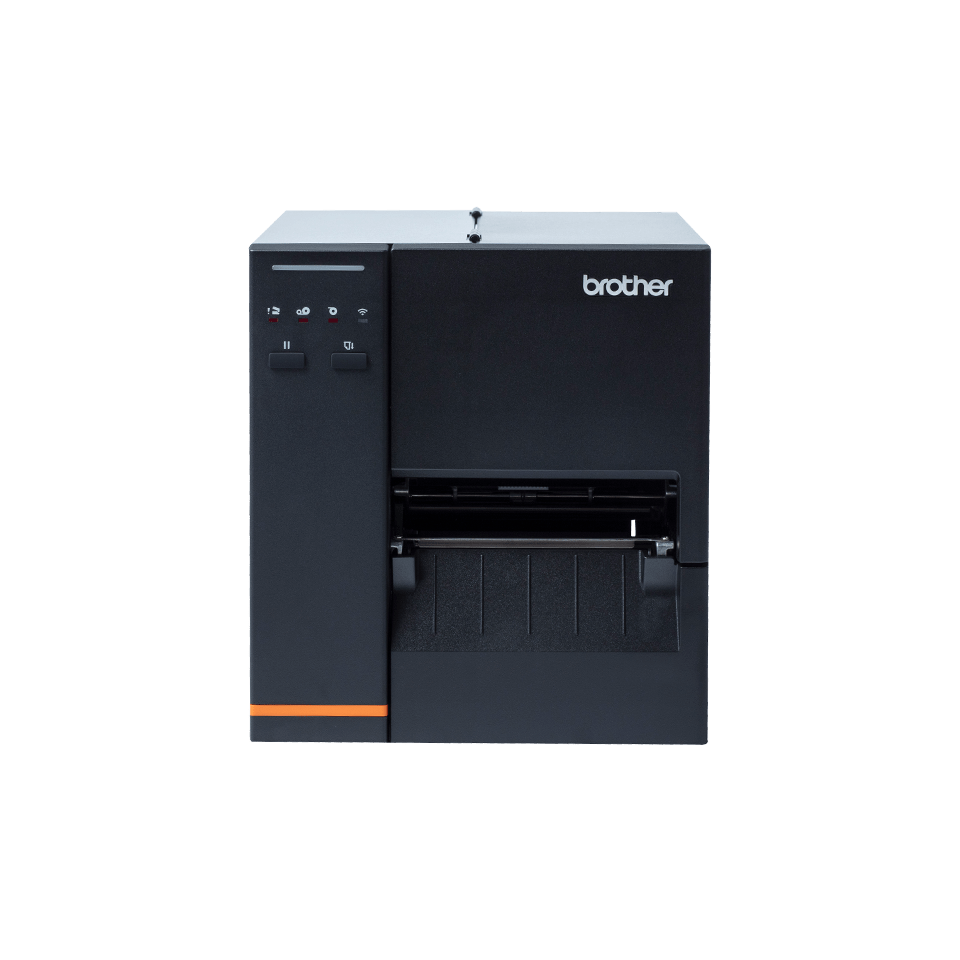

TJ-4005DN - Industrial label printer
4" (10.16cm) industrial direct thermal label printer with print width up to 107mm.Product Details
- Fast print speeds of up to 6ips (152mm/sec) with 203dpi resolution
- LED notification to indicate printer status
- Print width of up to 107mm
- FBPL-EZD (EPL2, ZPL2, DPL) printer command languages supported
- Large roll capacity for direct thermal media
- Connect easily with USB, USB Host, Serial, Ethernet and WiFi (optional)
Product Overview
The Brother TJ-4005DN industrial label printer offers performance you can rely on when keeping up with increasing demand.
The high-volume direct thermal label printer has been designed to ensure minimal downtime and maximum productivity through fast print speeds, large roll capacity and in-built durability.
With ZPL2 emulation compatibility and multiple connectivity options, the TJ-4005DN has been built with you in mind.
Supplies and Accessories
-
Coated, white label roll 100mm x 90m for thermal transfer printing. Sold in boxes of 4. The price listed is for a total of 4 rolls.This product is available from our authorized retailers
-
Uncoated die-cut label roll with 350 labels per roll in 100mm x 192mm for direct thermal technology. This product can only be purchased as a box with a total of 18 label rolls. The price is for 18 label rolls. This label roll is Brother Nordic certified.This product is available from our authorized retailers
-
Brother printhead compatible with selected TJ industrial label printers.This product is available from our authorized retailers
-
Brother replacement platen roller compatible with selected TJ industrial label printers.This product is available from our authorized retailers
-
Automatic label cutter accessory compatible with selected TJ industrial printers.This product is available from our authorized retailers
-
Automatic label peeler accessory with liner rewind, compatible with selected TJ industrial printers.This product is available from our authorized retailers
-
Slot-in WiFi module accessory compatible with selected TJ industrial printers.This product is available from our authorized retailers
Specifications
General
| Technology | Direct thermal |
| Buttons | Power , Feed |
| LED | Power, Status, Error |
| Memory capacity | RAM, FLASH, 128MB, 128MB |
Connectivity
| Serial | Yes |
| USB interface | USB 2.0 Full Speed, USB Host |
| Wired network interface | 10/100 Mbps |
Dimensions and weights
| Dimensions | 248mm (W) x 436mm (D) x 274mm (H) |
| Weight | 9.2kg |
In the box
| In the box | Quick Setup Guide (QSG), Printer, AC Power supply cord, USB Cable |
Operating systems & software
| Supported Operating Systems | Windows (8,1, 10, Server 2012 R2, Server 2016, Server 2019, 11), Mac (10,11 or higher ), iOS (9 or higher), Android (5 or higher ), Mac OSX, For the full list of compatible operating systems visit support.brother.com, Linux |
Printing
| Maximum Print Lenght | 25400mm |
| Maximum Print Speed | 6 ips |
| Resolution (dpi) | 203 |
| Supported commands | FBPL-EZD (EPL2, ZPL2, DPL) |
Printing
| One Dimensional Barcode Symbology | Code128, Interleaved 2 of 5, Code39, EAN13(JAN13), EAN8(JAN8), UPC-A, UPC-E, CODABAR(NW7), MSI, China post, ITF14, Code11, TELEPEN, TELEPEN number, Deutsche Post Identcode, Deutsche Post Leitcode, LOGMARS, PLESSEY, POSTNET, MSI/Plessey, Industrial 2-of-5, Standard 2-of-5, EAN14 |
| Printing Maximum Media Width | 120mm |
| Maximum Print Length | 25400mm |
| Printing Maximum Print Speed | 6 ips |
| Resolution (dpi) | 203 |
| Two Dimensional Barcode Symbology | GS1 Databar Composite, MaxiCode, Aztec, PDF417, QR Code, Micro PDF417, CODABLOCK F mode, TLC39 |
| Printing Maximum Roll Core Diameter | 76,2mm |
| Printing Maximum Roll Diameter | 203mm |
| Printing Minimum Print Width | 107 mm |
| Printing Minimum Roll Core Diameter | 25,4mm |
| Supported commands | FBPL-EZD (EPL2, ZPL2, DPL) |
Solutions
| SDK (Software Development Kit) | Yes |
Warranty
| Warranty | 5 years return-to-base |
Learn more about this product
Maximise productivity
The TJ-4005DN label machine offers fast print speeds to help you keep up with increasing demand. The high volume label printer is perfect for manufacturing and transport & logistics environments.Connectivity as standard
USB, USB Host, Serial and Ethernet are included as standard for the industrial printers. An optional WLAN interface for WiFi connectivity is also available as an accessory to meet your requirements.In-built durability
The TJ industrial printer series offers performance you can rely on, even in the toughest production environments. The reliable thermal barcode printer has been built with you in mind and built to last, ensuring you enjoy years of hassle-free label printing.Integrate with ease
With the Brother TJ series, there is no need to worry about integration.
Our industrial printers support various printer command languages, including ZPL2 emulation, making printer replacements as easy as possible - with minimal disruption.
